100N Push and Pull Force Meter

China 100N Push and Pull Force Meter supplier

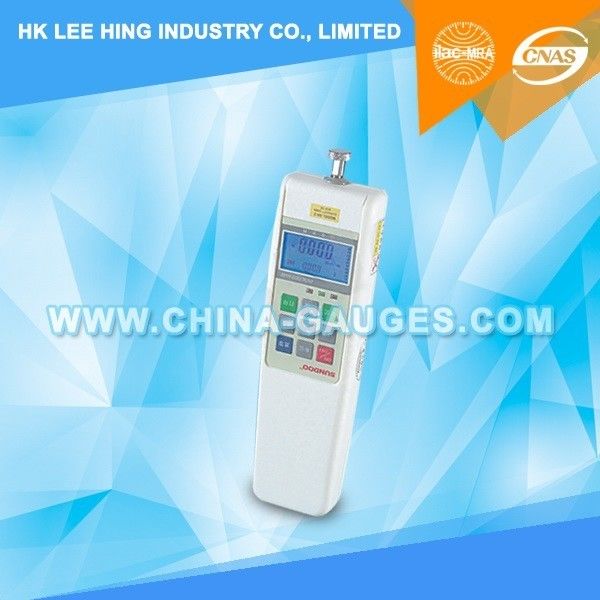

Large Image :  100N Push and Pull Force Meter

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: SH-100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: Other Standard

Brief Introduction:

100N Push and Pull Force Meter is multifunctional push pull testing instrument with high resolution. It is applied in push/pull test, insertion/withdraw test, and fracture test. More over, the product, connecting to computer to display the test force curve and test process, is efficient push pull testing equipment in a new generation.



Product Trait:

1.Peak holding and auto-releasing function: The peak holding time can be set (1-10 seconds);

2.Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go(Green pilot lamp)/NG(Red pilot lamp);

3.Memory function: Memory 10 testing data, and calculate the average;

4.Units conversion: Converting three units(N, kgf, lbf) automatically;

5.LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;

6.Automatic power off function: Power off time (1-60 minutes) can be set by user;

7.RS-232Coutput: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing;

8.Patent number: ZL200620013022.2,ZL200610072362.7;


ModelSH-100
Capacity100N
Load Resolution0.05N
Sensor conformationSensor Inside
Measuring range10%~100% FS
Inaccuracy±0.5%
Power8.4V 12V * 7 Nickel hydride battery
Charging timeabout 4 hours
Operating timeabout 40 hours
Waiting time3 month
Battery life≥300 of times
AdaptorInput: AC 220V 50Hz;
Output: DC 12V 300mA;
Weightabout0.7kg
