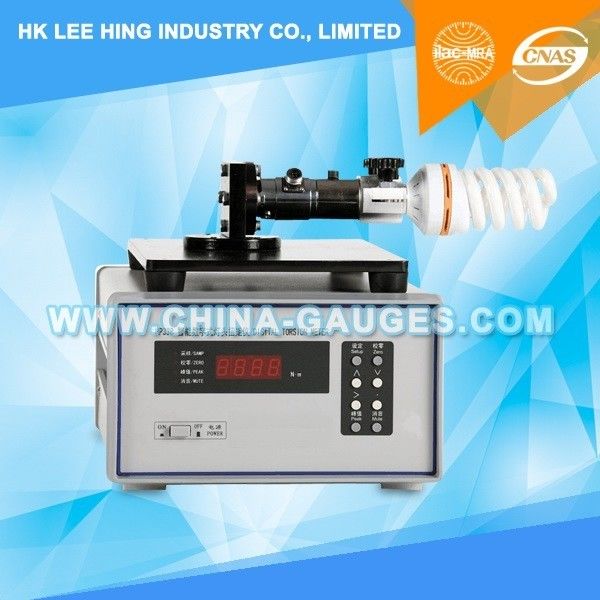

Lamp Cap Torsion Test Apparatus

China Lamp Cap Torsion Test Apparatus supplier

Large Image :  Lamp Cap Torsion Test Apparatus

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: HP338

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description

Characteristics:

1) It can measure the clockwise and anti-clockwise torque of lamp cap. And it can preset upper limit alarm. Auto save data after system shutting down.

2) Instrument has the function of zero point calibration. The zero point is very steady. Instrument uses 4 digits of number to display. So it is of high accuracy and high stability.

3) Double watchdogs designed inside to ensure the instrument high reliability and will not shut down under complicated environment.

4) Instrument is convenient to be used because of several clamps of lamp caps such as E27/E26, B22d, E14/E12, G13/G5 and so on.



Specification:


Range0-10N•m
Accuracy≤1%
Repeatability≤0.5% FS
Linearity≤0.5% FS
Lag≤0.5% FS
Over loading capacity120% FS
Temperature compensation range-10°c-60°c
Requirements for environmentWorking temperature: 25±5°c
 Relative humidity: ≤65% R.H
 Power: AC 220V ± 10V, 50Hz ± 1Hz
Limitation for environmentWorking temperature: 0-40°c
 Relative humidity: ≤75% R.H
 Power: AC 220V ± 10%, 50/60Hz
Store conditionTemperature: -20~50°c
 Humidity<75% R.H.
DimensionW330mm x H110mm x 335mm
Power15VA
