IEC60061-3: 7006-26-4 E40 No Go Gauges for Screw Threads of Lampholders

China IEC60061-3: 7006-26-4 E40 No Go Gauges for Screw Threads of Lampholders supplier

Large Image :  IEC60061-3: 7006-26-4 E40 No Go Gauges for Screw Threads of Lampholders

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: 7006-26-4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC60061

IEC60061-3: 7006-26-4 E40 No Go Gauges for Screw Threads of Lampholders

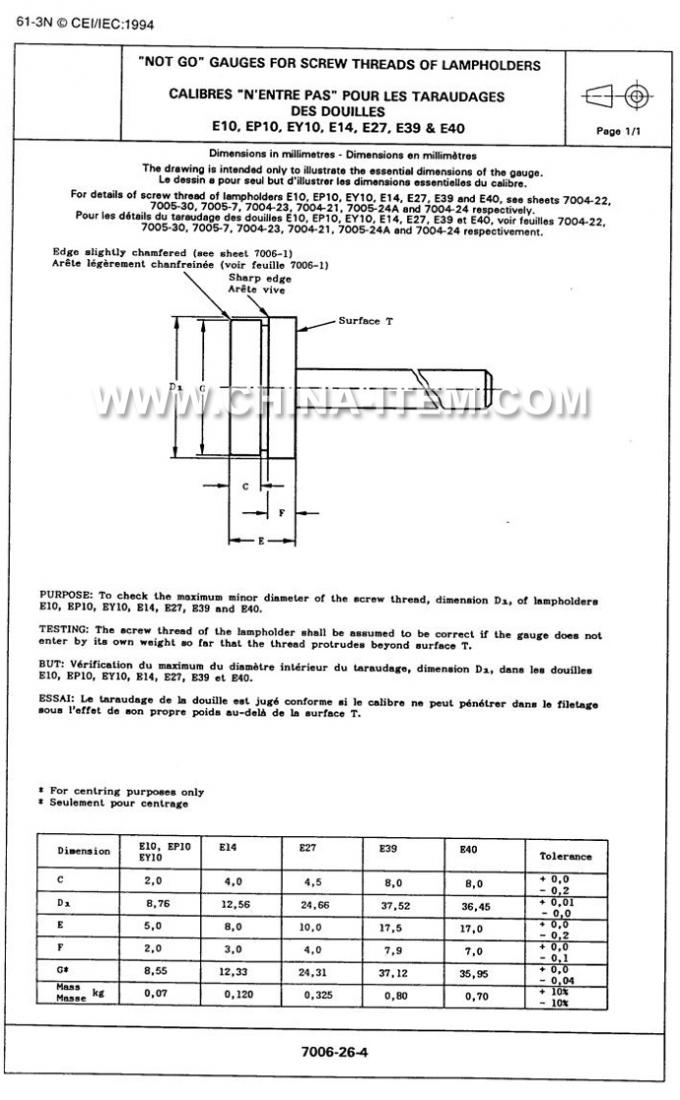

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of screw thread of lampholders E10, EP10, EY10, E14, E27, E39 and E40, see sheets 7004-22, 7005-30, 7005-7, 7004-23, 7004-21, 7005-24A and 7004-24 respectively.

PURPOSE: To check the maximum minor diameter of the screw thread, dimenaion D1, of lampholders E10, EP10, EY10, E14, E27, E39 and E40.

TESTING: The screw thread of the lampholder shall be assumed to be correct if the gauge does not enter by its own weight so far that the thread protrudes beyond surface T.

* For cetring purposes only



IEC60061-3: 7006-26-4 E40 No Go Gauges for Screw Threads of Lampholders
