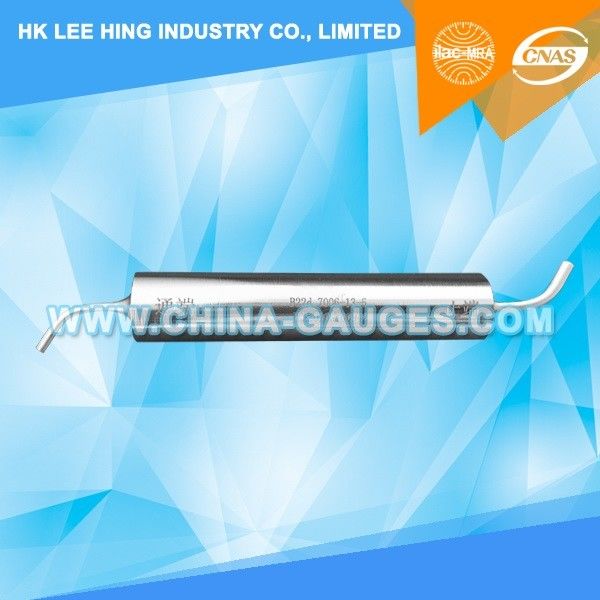

IEC60061-3: 7006-13-5 B22d Gauge for The Slots in Lampholders

China IEC60061-3: 7006-13-5 B22d Gauge for The Slots in Lampholders supplier

Large Image :  IEC60061-3: 7006-13-5 B22d Gauge for The Slots in Lampholders

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: 7006-13-5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC60061

IEC60061-3: 7006-13-5 Gauge for The Slots in Lampholders B22d

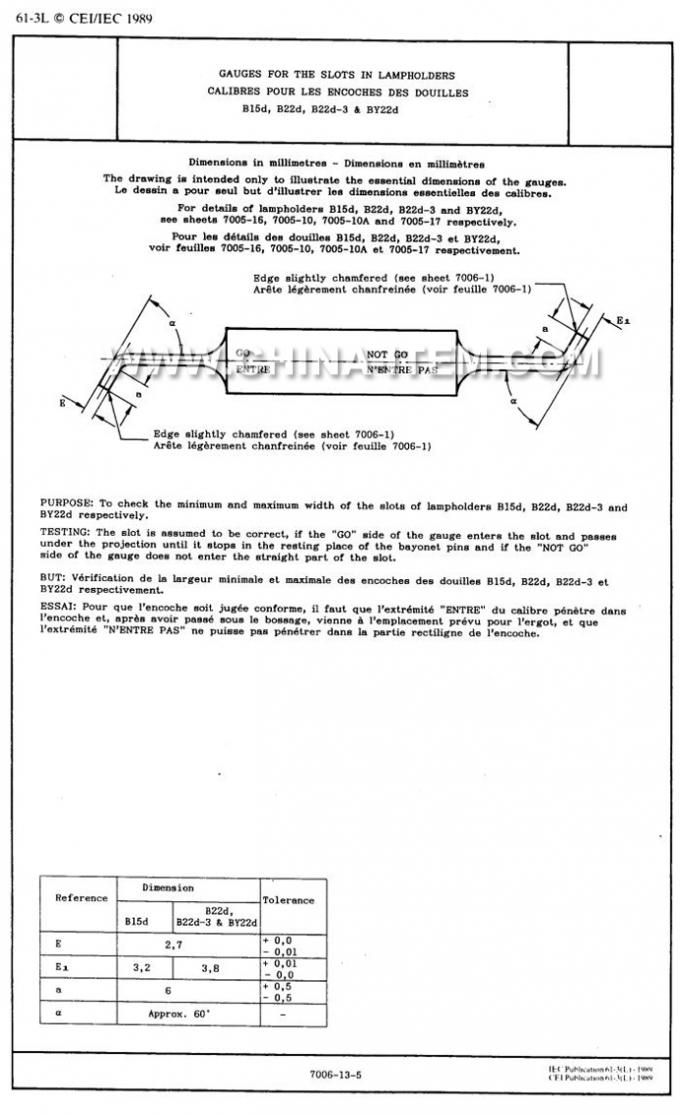

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of lampholders B15d, B22d, B22d-3 and BY22d, see sheets 7005-16, 7005-10, 7005-10A and 7005-17 respectively.

PUEPOSE: To check the minimum and maximum width of the slots of lampholdrs B15d, B22d, B22d-3 and BY22d respectively.

TESTING: The slot is assumed to be correct, if the "GO" side of the gauge enters the slot and passes under the projection until it stops in the resting place of the byonet pins and if the "NOT GO" side of the gauges does no tenter the strainht part of the slot.


IEC60061-3: 7006-13-5 B22d Gauge for The Slots in Lampholders
