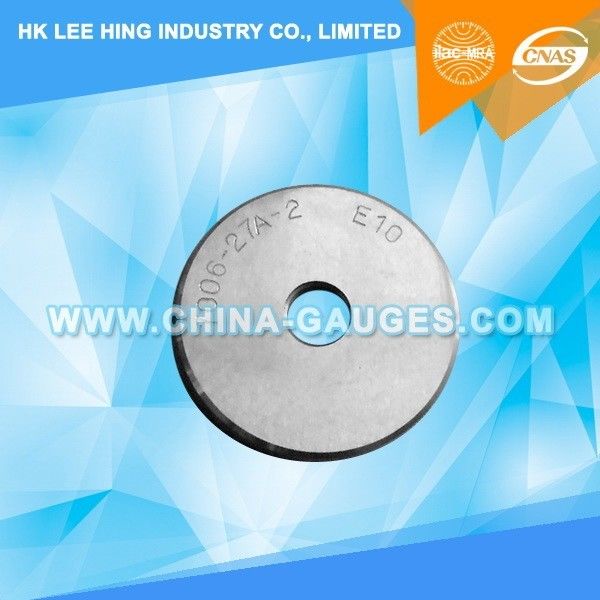

IEC60061-3: 7006-27A-2 Go Gauge for Caps E10

: Large Image : IEC60061-3: 7006-27A-2 Go Gauge for Caps E10

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	7006-27A-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Export standard packing
Delivery Time:	5 working days
Payment Terms:	T/T, Western Union
Supply Ability:	200 per month

Contact Now

Detailed Product Description

Standard:	IEC60061

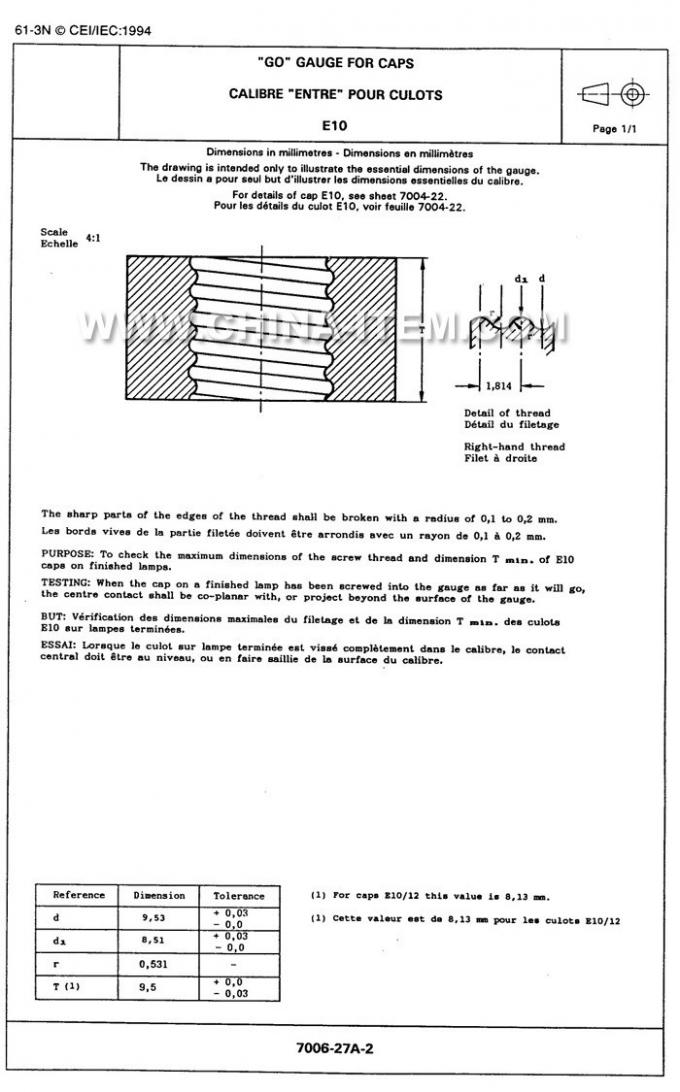

E10 Go Gauge for caps on finished lamps according to IEC60061 7006-27A-2

The drawing is intended only to illustrate the essential dimensions of the gauge.

For details of cap E10, see sheet 7004-22.

The sharp parts of the edges of the the thread shall be broken with a radius of 0.1 to 0.2 mm.

Purpose: To check the maximum dimensions of the screw thread and dimension T min. of E10 caps on finished lamps.

Testing: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with, or project beyond the surface of the gauge.

IEC60061-3: 7006-27A-2 Go Gauge for Caps E10
