IEC60061-3: 7006-44-4 Go and No go Gauge for Unmounted Bi-pin Cap Gauge Testing G13 (Not for use on Finished Lamps)

China IEC60061-3: 7006-44-4 Go and No go Gauge for Unmounted Bi-pin Cap Gauge Testing G13 (Not for use on Finished Lamps) supplier

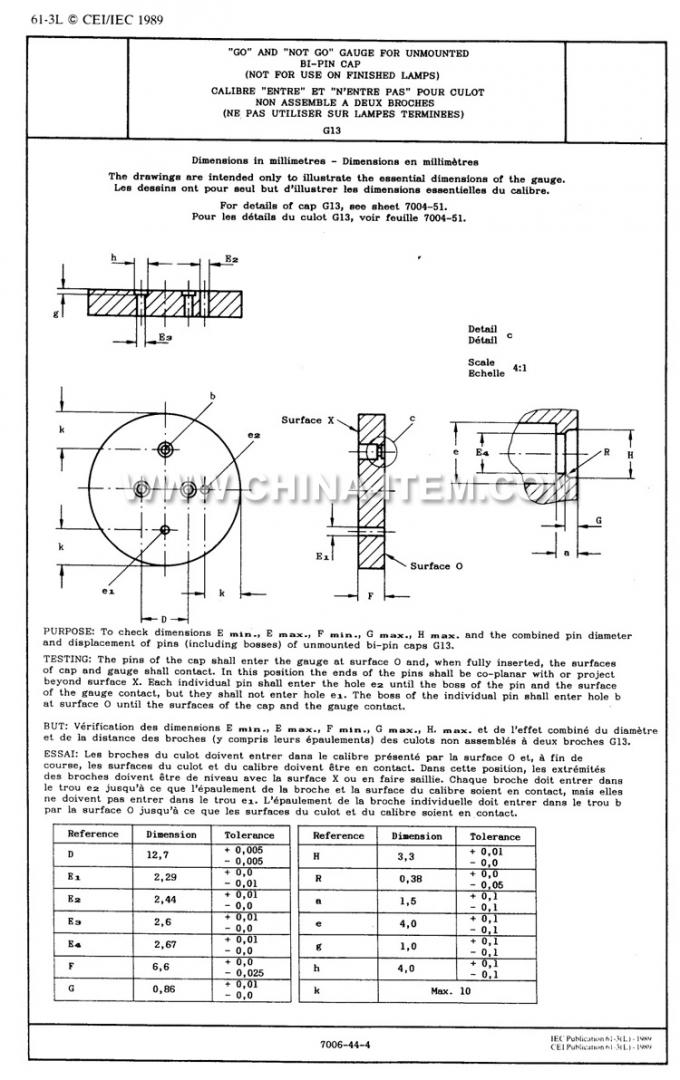

Large Image :  IEC60061-3: 7006-44-4 Go and No go Gauge for Unmounted Bi-pin Cap Gauge Testing G13 (Not for use on Finished Lamps)

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: 7006-44-4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC60061

Go and not go gauge for unmounted bi-pin cap(not for use on finished lamps) G13, 7006-44-4





Purpose:

To check dimensions E min., E max., F min., G max., H max. and the combined pin diameter and displacement of pins (including bosses) of unmounted bi-pin caps G13.



Testing:

The pins of the cap shall enter the gauge at surface O and, when fully inserted, the surface of cap and gauge shall contact. In this position the ends of the pins shall be co-planar with or project beyond surface X. Each individual pin shall enter the hole e2 until the boss of the pin and the surface of the gauge contact, but they shall not enter hole e1. The boss of the individual pin shall enter hole b at surface O until the surfaces of the cap and the gauge contact.



IEC60061-3: 7006-44-4 Go and No go Gauge for Unmounted Bi-pin Cap Gauge Testing G13 (Not for use on Finished Lamps)





 Company introduction


HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
