E27 Go No Go Gauges of Finished Lamp Cap

China E27 Go No Go Gauges of Finished Lamp Cap supplier

Large Image :  E27 Go No Go Gauges of Finished Lamp Cap

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-E27GN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC60061

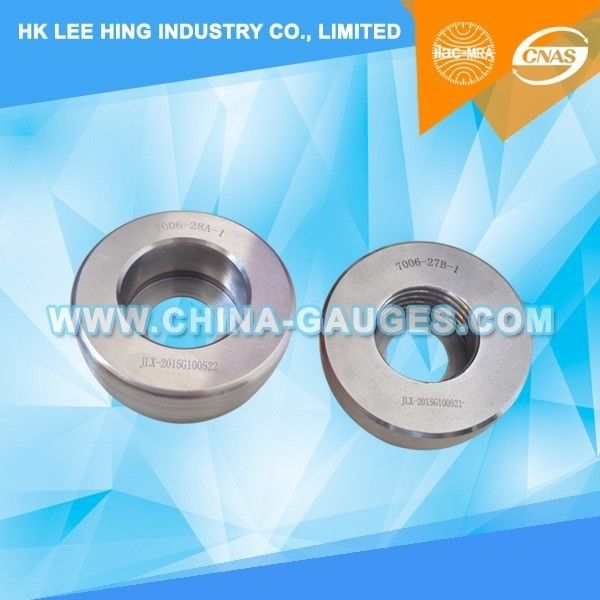

E27 Go No Go Gauges of Finished Lamp Cap Include:



1) IEC60061-3 7006-27B-1 Go Gauges for E27 Caps on Finished Lamps;

PURPOSE:
To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps shown on sheet 7004-21.


TESTING:
When the cap on a finished lamp has been screwed into the gauges as far as it will go, the centre contact shall be coplanar with, or project beyond surface X.







2) IEC60061-3 7006-28A-1 No Go Gauges for E27 Caps on Finished Lamps;

Purpose:
To check the minimum outside (major) diameter of the screw thread, dimension "d" of E27 caps on finished lamps shown on sheet 7006-21.



Testing:
When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface "X". Only the weight of the gauge itself shall be used in the test.
