IEC60061-3: 7006-109-1 MR16 GU5.3 Go and No Go Gauge for Bi-Pin Bases

China IEC60061-3: 7006-109-1 MR16 GU5.3 Go and No Go Gauge for Bi-Pin Bases supplier

Large Image :  IEC60061-3: 7006-109-1 MR16 GU5.3 Go and No Go Gauge for Bi-Pin Bases

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: 7006-109-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC60061

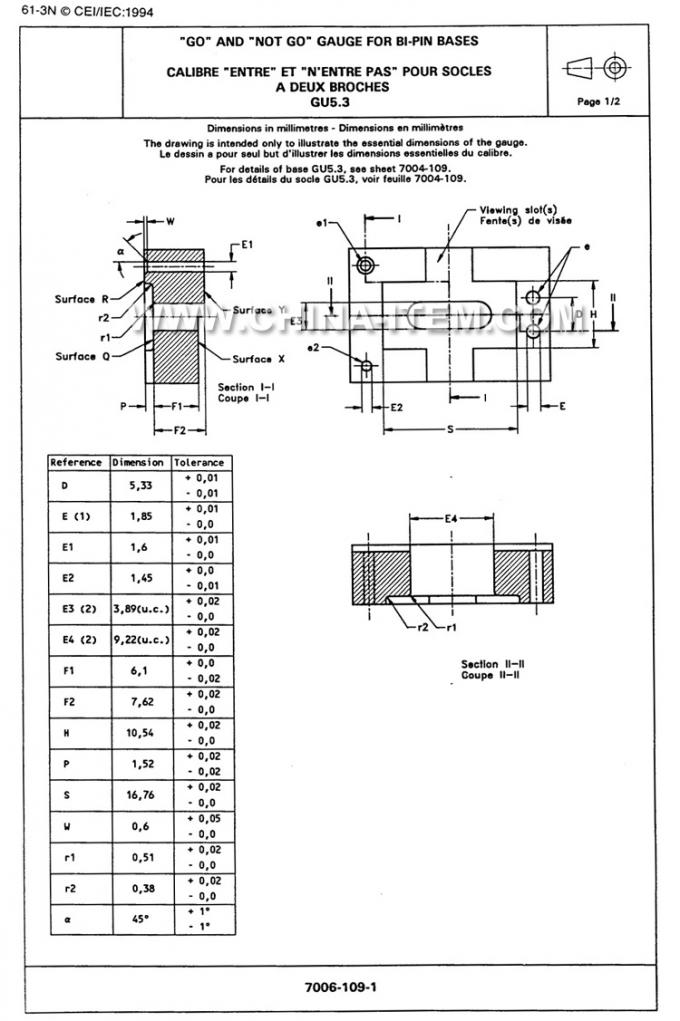

For details of base GU5.3, see sheet 7004-109.





PURPOSE: To check the base GU5.3 in the following respects:
-the diameter of the individual pins (dimension E);
-the combined displacement and diameter of the pins (dimensions D and E);
-the length of the pins (dimension F);
-dimensions Smax and Hmax;
-the allowable build-up of cement within dimension W.


TESTING: It shall be possible to insert each individual pin of the base into the hole e1 until surface Q of the base touches surface R of the gauge.
It shall not be possible to insert each individual pin into hole e2.
It shall be possible to insert both pins simultaneously into the holes e.
It shall be possible to insert the base into the gauge with the pins entering at surface Q until surface Q of the base is in contact with surface Q of the gauge.
In this position, the ends of the pins shall be co-planer with or project beyound surface X but shall not project beyond surface Y.



IEC60061-3: 7006-109-1 MR16 GU5.3 Go and No Go Gauge for Bi-Pin Bases
