| Standard: | According To IEC 61032-1997 Figure 12 And Figure 13. - See More At: Http://www.china-gauges.com/product/IEC61032-Small-Finger-Probe.html#sthash.J4nDg7BN.dpuf |
|---|

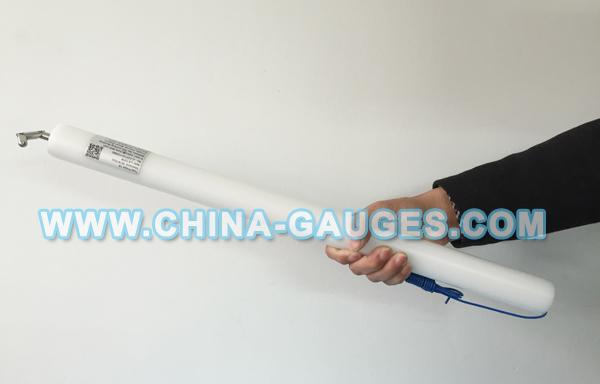

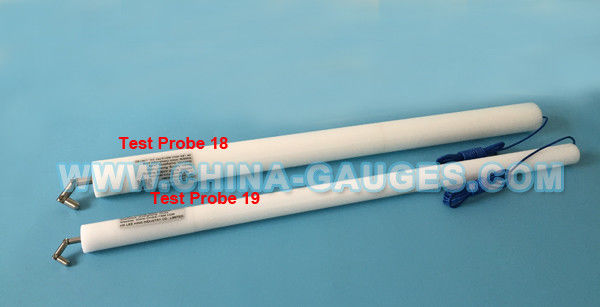

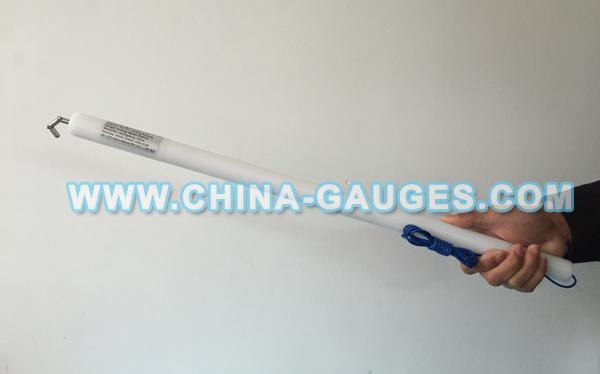

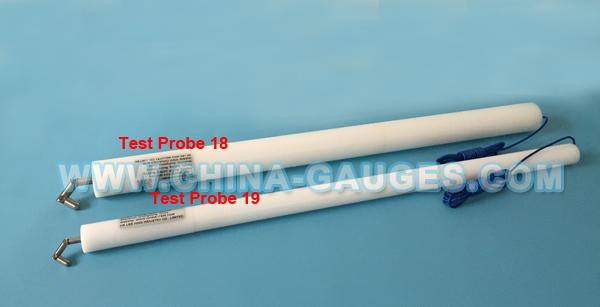

Children Test Finger Probe 18 and 19 , IEC61032 Jointed Children Test Finger
Product information:

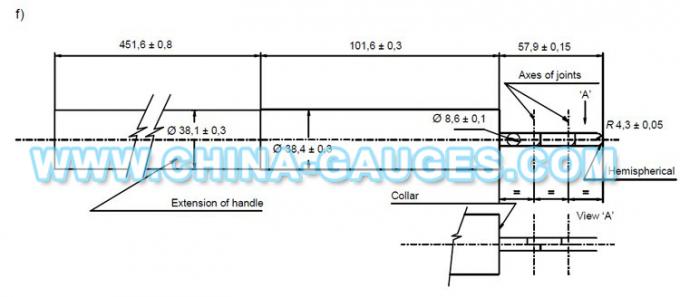

Children finger probe 18 conforms to IEC61032 figure 12 finger probe 18, IEC335.1,UL1017 standards. It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

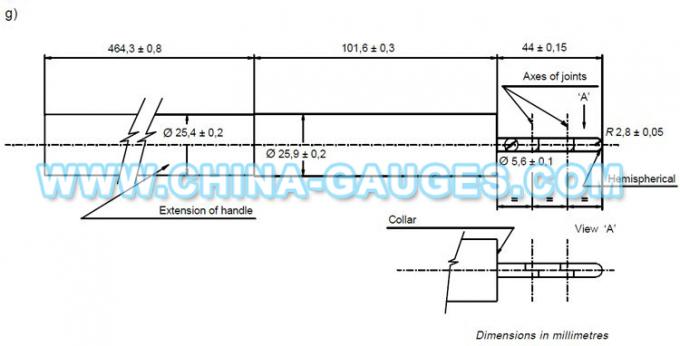

Children finger probe 19 conforms to IEC61032 figure 13 finger probe 19, IEC335.1,UL1017 standards. It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.
Customizable: It can be used for anti-electric shock test when equipped with amphenol connector.
Main specification and corresponding technical parameters:
| Parameters /Model | Children’s finger probe 18 | Children’s finger probe 19 |
|
Head Radius |
R4.3±0.05mm | R2.8±0.05mm |
|
Knurled Finger Diameter |
Ф8.6±0.1mm | Ф5.6±0.1mm |
|
Knurled Finger Length |
57.9±0.15mm | 44±0.15mm |
|
The Fist Handle Diameter |
Ф38.4±0.3mm | Ф25.9±0.3 |
|
The Fist Handle Length |
101.6±0.3mm | 101.6±0.3mm |
|
The Second Handle Diameter |
Ф38.1±0.3mm | Ф25.4±0.3mm |
|
The Second Handle Length |
451.6±0.8mm |
464.3±0.8mm |
