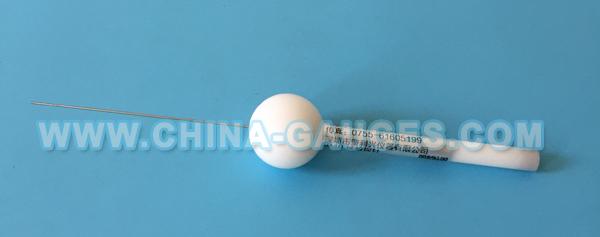

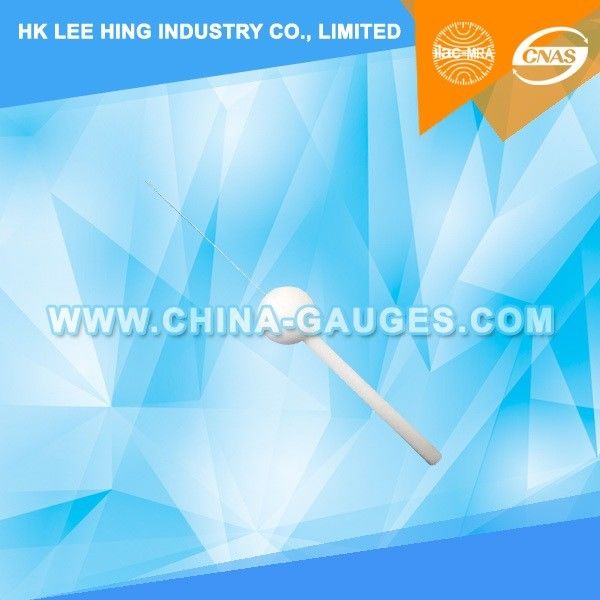

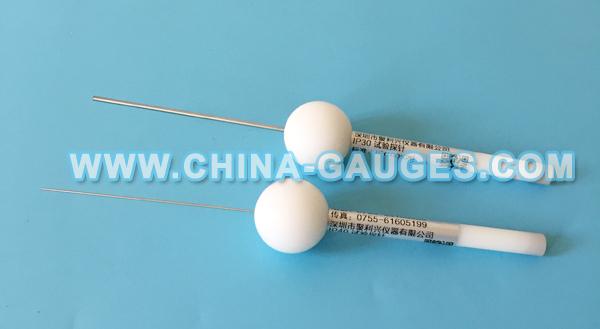

Test Wire 1, 0mm Diameter 100mm Long of IEC61032

China Test Wire 1, 0mm Diameter 100mm Long of IEC61032 supplier
Test Wire 1, 0mm Diameter 100mm Long of IEC61032 supplier Test Wire 1, 0mm Diameter 100mm Long of IEC61032 supplier Test Wire 1, 0mm Diameter 100mm Long of IEC61032 supplier

Large Image :  Test Wire 1, 0mm Diameter 100mm Long of IEC61032

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-1204

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC 61032

IEC 61032:1997 Test Probe D IP4X Test Wire 1.0 mm






Basic Introduction:
1. According to: GB/T4208-2008 / IEC 61032:1997 / IEC 60529:2001 / IEC 60065 / IEC 60598 and UL

2. IP4X Test Probe D ( Test Probe D) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

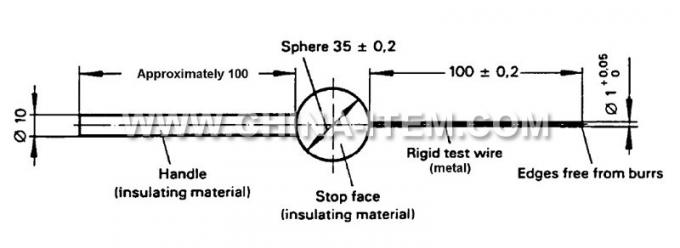

Technical parameters:



1. Wire length: 100 mm
2. Wire diameter: 1.0 mm
3. Circular-baffle diameter: 35 mm
4. Handle diameter: 10 mm
5. Handle length: 100 mm

6. According to IEC 61032 figure 4 (the Test probe D).






Application:
1. Standard test refers to the joint part can't touch the live parts or close to the dangerous parts. and 35mm circular baffle can not be enter.
2. In the test requirement for preventing access to the hazardous parts. Test Probe D need to be with push force 1±0.1N




Purpose:

This probe is intended to verify the basic protection against access to hazardous parts. It's also used to verify the protection against access with a tool.




Note:

For without thrust products, please use with the push tension dynamometer.



Test Wire 1, 0mm Diameter 100mm Long of IEC61032

Test Wire 1, 0mm Diameter 100mm Long of IEC61032

Test Wire 1, 0mm Diameter 100mm Long of IEC61032
