IEC61032 Figure 8 Test probe 12, Safety Test Probe 13 IEC61032 Fig. 9

Large Image : IEC61032 Figure 8 Test probe 12, Safety Test Probe 13 IEC61032 Fig. 9

Product Details:

Place of Origin:	Made in China
Brand Name:	JLX
Certification:	ISO 17025 CNAS & ILAC Test Report
Model Number:	LX-1312

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Aluminum Box
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500 per month

Contact Now

Detailed Product Description

Standard:	According To IEC 61032-1997 Figure 8 And Figure 9.

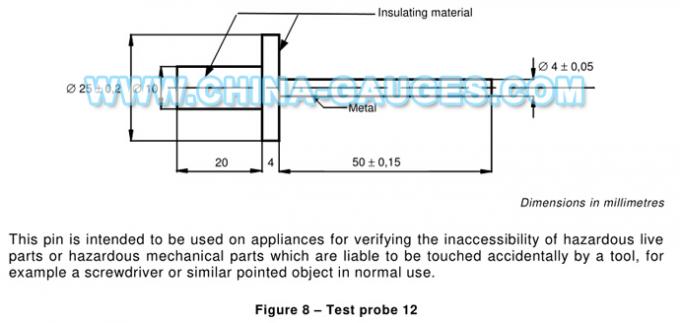

1) Long Test Pin of IEC 61032 Figure 8 - Test Probe 12
This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.

IEC61032 Figure 8 Test probe 12, Safety Test Probe 13 IEC61032 Fig. 9

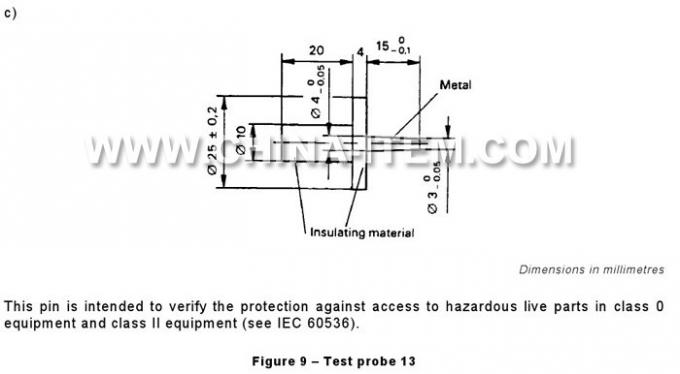

2) Short Test Pin of IEC 61032 Figure 9 - Test Probe 13
This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC 60536).

IEC61032 Figure 8 Test probe 12, Safety Test Probe 13 IEC61032 Fig. 9
