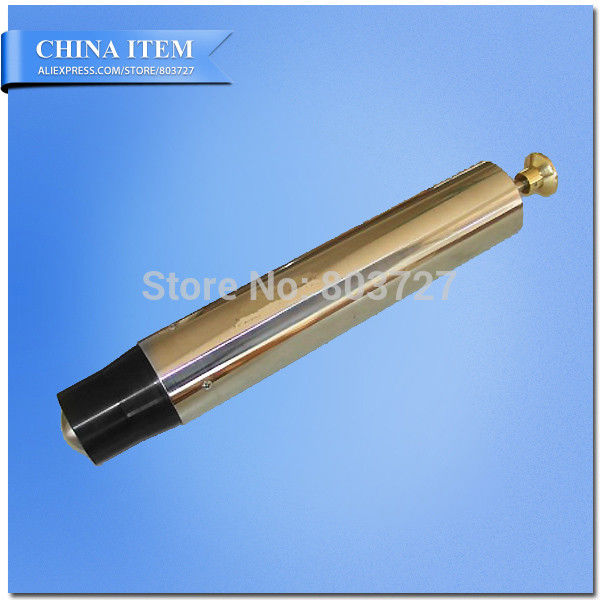

Spring-operated Impact Hammer
Required by many Standards to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards. Built in exact accordance to IEC60068-2-75 Ehb, EN, UL, CSA and other international Standards.
· Body: Includes release mechanism and striking element guide, mass 1250 g, outside diameter 50mm.
· Striking element: With cocking knob and with hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g, length approx. 310mm.
· Release Cone: Mass 60 g, release force ≤ 10N.
· Model: LX-T5.0: Impact energy of 5 J± 0, 25 J, mass of striking element is 1.7 kg, hammer heads made of steel with r=25 mm, 10 N release force.
Shenzhen Julixing Instruments Co., Ltd.are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services andrelated information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires,automobile lighting systems or related categories, we can provide the solutions you need.
