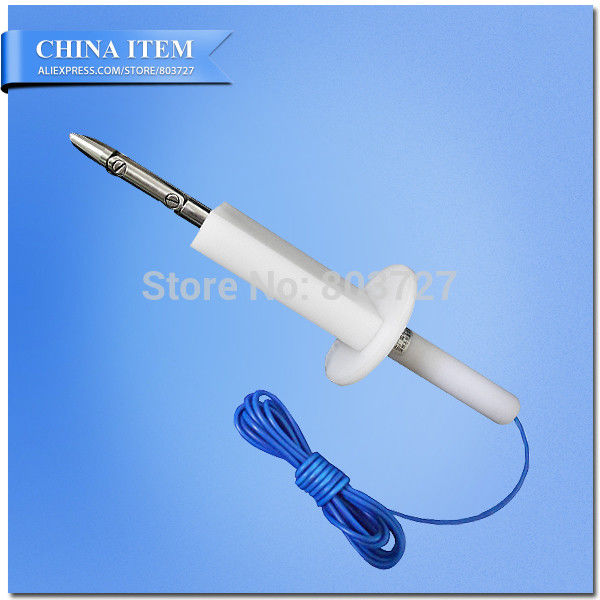

IRAM 4220-1 Standard IP2X Jointed Test Finger with Test Cable
IEC 61032 the Standard Jointed Test Finger Probe B
IP2X Protection Probe
1. Conforms to: Standard IEC 61032-1997, IEC 60529-2001, GB/T4208-2008 and UL etc.
2. The Standard Test Knurled Finger Probe is the necessary appliance to prevent electric shock for household and similar electrical problem.
1. Knurled Finger Diameter: 12mm
2. Knurled Finger Length: 80mm
3. Baffle Plate Diameter: 50mm
4. Baffle Plate Length: 100mm
5. Baffle thickness: 20mm
1. The joint part of The Standard Test Knurled Finger Probe can't touch the live parts or close to the dangerous parts, and 50 mm to 20 mm baffle plate cannot enter.
2. In the prevent electric shock test, wirings , power devices, and lighting devices are needed.
Both joints shall permit movement in the same plane and the same direction through an angle of 90o with a 0o to +10o tolerance.
Shenzhen Julixing Instruments Co., Ltd.are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services andrelated information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires,automobile lighting systems or related categories, we can provide the solutions you need.
