Circular Plane Surface 30 mm for Steady Force Test 250 N

China Circular Plane Surface 30 mm for Steady Force Test 250 N supplier

Large Image :  Circular Plane Surface 30 mm for Steady Force Test 250 N

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-9030

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC 60950

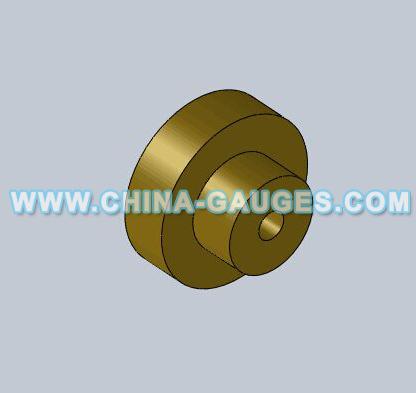

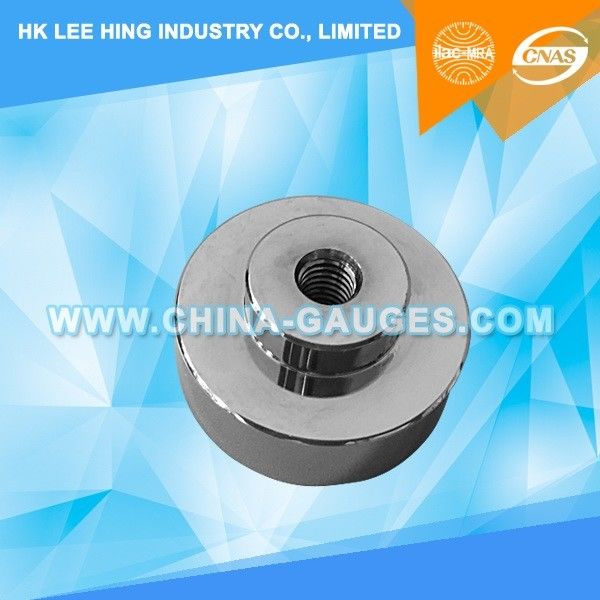

Circular Plane Surface 30 mm for Steady Force Test 250 N





According to IEC60950 clause 4.2.4 and IEC60065 clause 9.1.7, diameter 30mm, stainless steel material, it can be used with push pull meter with M6 caliber.



External ENCLOSURES are subjected to a steady force of 250 N ± 10 N for a period of 5 s, applied in turn to the top, bottom and sides of the ENCLOSURE fitted to the equipment, by means of a suitable test tool providing contact over a circular plane surface 30 mm in diameter. However, this test is not applied to the bottom of an ENCLOSURE of equipment having a mass of more than 18 kg.

c) external conductive enclosures and conductive parts of an external enclosure shall be subjected for 5 s to a steady force of (250 ± 10) N for floor-standing apparatus or (100 ± 10) N for other apparatus, applied to the enclosure or to a part of the enclosure fitted to the apparatus, by means of a suitable test tool providing contact over a circular plane surface 30 mm in diameter.



Circular Plane Surface 30 mm for Steady Force Test 250 N







 Company introduction


HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
