IEC60598-1 Test Chain

China IEC60598-1 Test Chain supplier

Large Image :  IEC60598-1 Test Chain

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-LG05

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: IEC60598

Standards: IEC60598-1 clause 4.26.3



Chain Length: 1.30 meters



Chain Diameter: 2 mm



Resistance: 2.5Ω/m±20%



Purpose: Used for lighting without insulation , accessible and opposite SELV part accidental short circuit protection test.

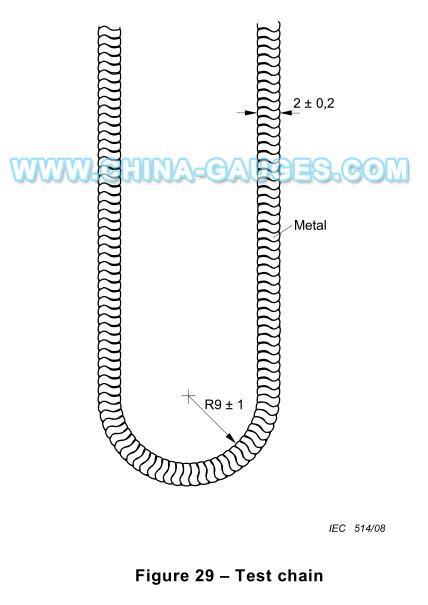

Test chain of sufficient length of an uncoated metal, having links in accordance with IEC60598 Figure 29 and made of 63 % Cu/37 % Zn. The chain shall have a resistance value of 2,5 Ω/m ± 20 % when stretched with a load of 200 g/m.



NOTE: The resistance value of the test chain should be checked before each measurement.

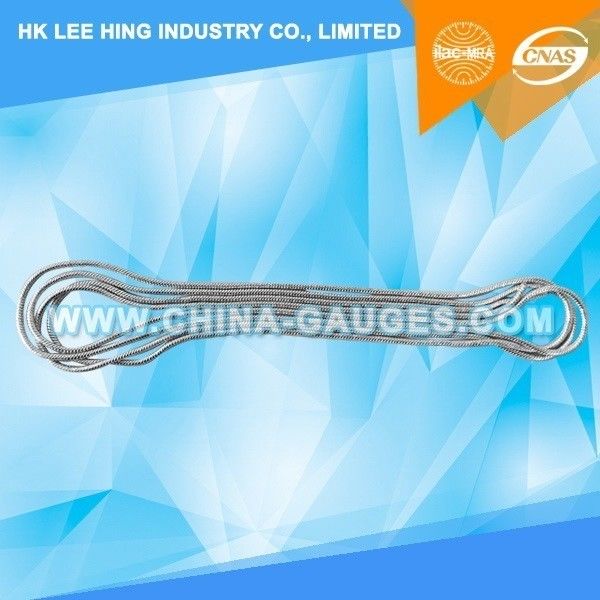

IEC60598-1 Test Chain
