AS/NZS 3112 Plugs and Socket-Outlets Gauge

China AS/NZS 3112 Plugs and Socket-Outlets Gauge supplier

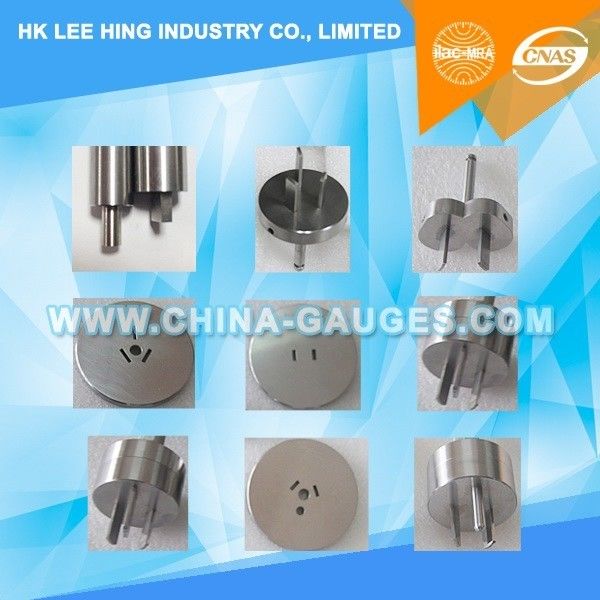

Large Image :  AS/NZS 3112 Plugs and Socket-Outlets Gauge

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-ASNZS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: AS/NZS 3112

AS/NZS 3112 Plugs and Socket-Outlets Gauge

1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.


2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.


3. Specifications:





Name Description QTY
AS/NZS3112 figure3.1/10A/15A Depth of No-contact test gauge 1
AS/NZS3112 figure3.6 Max 10A Device for checking the resistance to lateral strain (Three Pin Gauge) 1
AS/NZS3112 figure3.7 Max 10A Device for checking the resistance to lateral strain (Two Pin Gauge) 1
AS/NZS3112 figure A1 Gauge for three –Pin Flat-Pin Plugs 1
AS/NZS3112 figure B1 Gauge for Two-Pin Flat-Pin Flat- Pin Plugs with Parallel Pins 1
AS/NZS3112 figure C1 Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. 1
AS/NZS3112 figure D1 Three-pin test plug with flat pins for abnormal insertion test . 1
AS/NZS3112 figure F1 Plugs and socket-outlets for use in extra-low voltage circuits 1
AS/NZS3112 figure G1 Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test 1















 Company introduction


HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: Go No Go Gauges, IP Tester, Test Probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
