UL 498 2012 Plugs and Receptacles Gauges

China UL 498 2012 Plugs and Receptacles Gauges supplier

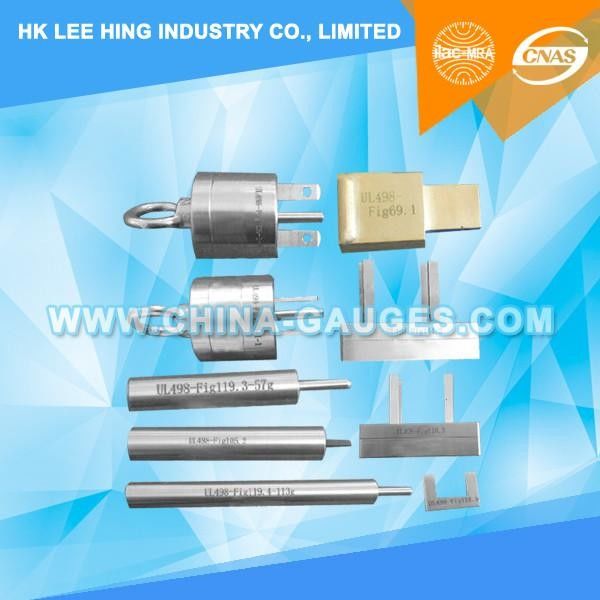

Large Image :  UL 498 2012 Plugs and Receptacles Gauges

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-UL498

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: UL 498

UL 498 : 2012 Plugs and Receptacles Gauges



1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.


2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.



3.Specifications:

Item Figure No. Describe Quantity
1 UL498-2012 Figure 9.1 Articulate probe with web stop 1
2 UL498-2012 Figure 10.1 Probe 1
3 UL498-2012 Figure 31.1 Flat probe 1
4 UL498-2012 Figure 73.1 Reference plug 1
5 UL498-2012 Figure 73.2 Typical test apparatus 1
6 UL498-2012 Figure 98.1 Improper insertion test blades 2
7 UL498-2012 Figure 109.1 Test plug 2
8 UL498-2012 Figure 109.2 Test blade 1
9 UL498-2012 Figure 122.1 Receptacle test fixture 1
10 UL498-2012 Figure 122.3 Push out tool 1
11 UL498-2012 Figure 122.5 Bridge 1
12 UL498-2012 Figure 123.1 Test pin A 1
13 UL498-2012 Figure 123.2 Test pin B 1
14 UL498-2012 Figure 123.3 57g ground pin 1
15 UL498-2012 Figure 123.4 113g ground pin 1
16 UL498-2012 Figure 133.2 No.14AWG test pin 1
17 UL498-2012 Figure 136.1 Small test probe 1
18 UL498-2012 Figure 165.2 Fixture for assembly security test 1
19 UL498-2012 Figure SD 5.1 Standard grounding pin 1
20 UL498-2012 Figure SD 13.1 Standard grounding pin 1
21 UL498-2012 Figure SD 13.2 Over size ground pin 1
