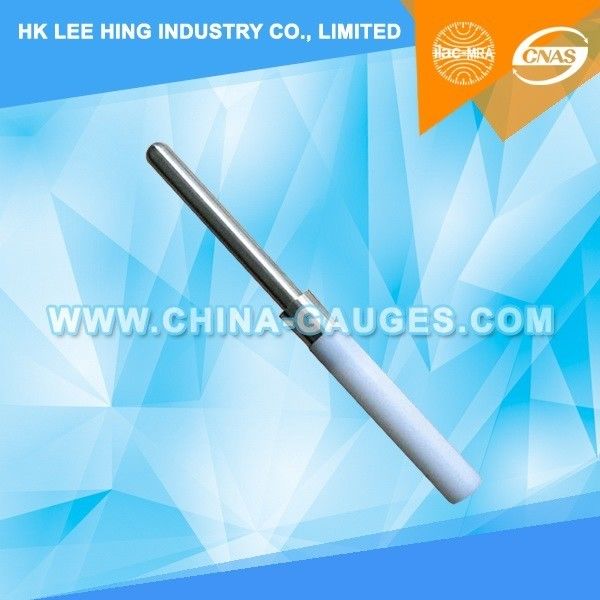

PA140A UL Enameled Wire Probe of UL1278

China PA140A UL Enameled Wire Probe of UL1278 supplier

Large Image :  PA140A UL Enameled Wire Probe of UL1278

Product Details:

Place of Origin: Made in China
Brand Name: JLX
Certification: ISO 17025 CNAS & ILAC Test Report
Model Number: LX-PA140A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export standard packing
Delivery Time: 5 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 per month
Contact Now
Detailed Product Description
Standard: UL1278

The probe is used for the enamel wire, shall be applied to any depth that the opening will permit and shall be rotated or angled before, during, and after insertion through the opening to any position that is necessary to examine the enclosure.

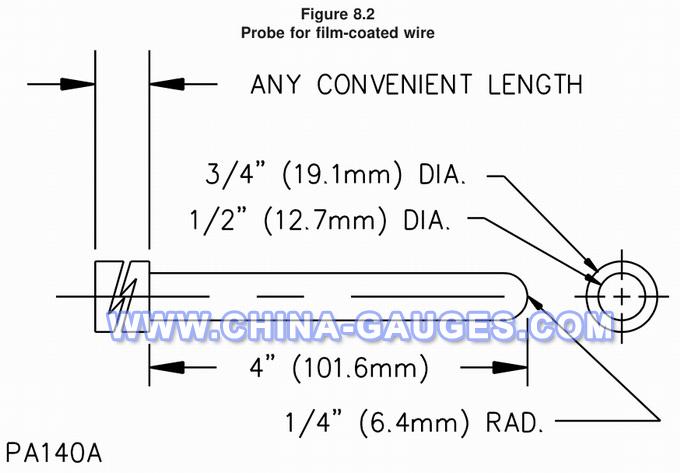

Technical parameters:

Total Length: 101.6mm(4 inch)
Head Diameter: 12.7mm(1/2 inch)
Former Head Radius: 6.4mm(1/4 inch)
Tail Diameter:19.1mm(3/4 inch)
Standard: UL398 Fig 8.2(PA170B),UL507(PA170D),UL749 Fig 2,UL982 Fig 58.6 and UL1278 Fig 8.2(PA140A)



PA140A UL Enameled Wire Probe of UL1278
